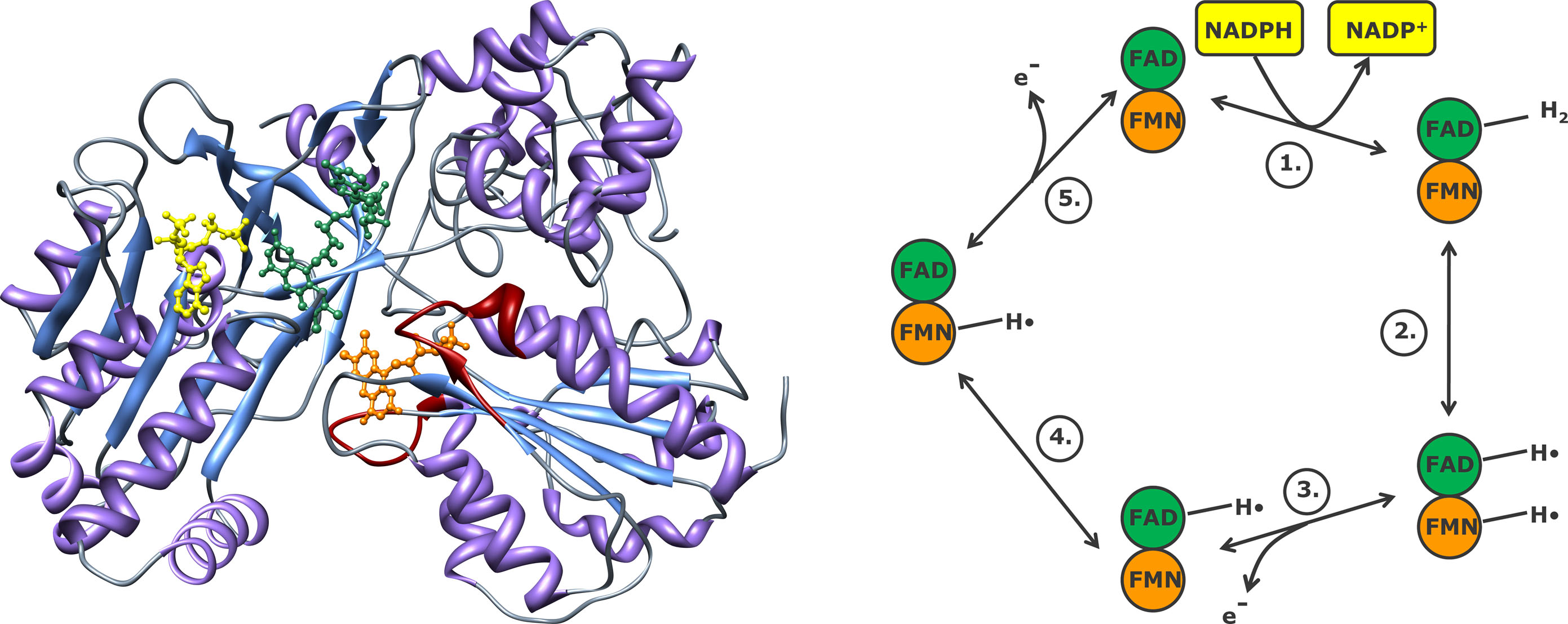

• The NADPH-dependent cytochrome P450 reductase (CPR) is a membrane bound protein localized in the ER membrane. CPR is a multidomain protein with three cofactor binding domains (FMN, FAD and NADPH) and a linker domain situated between the FMN and FAD/NADPH domains. CPR donates electrons from the two-electron donor NADPH to the heme of P450 in a coupled two-step reaction as illustrated in picture below. NADPH binds to the NADPH-binding domain and electrons are shuttled from NADPH through FAD and FMN to the P450 heme. Please see the CPR structure below, color correlated with the reaction mechanism to its right.
•
  (Click for a larger image.)
•
  Putative function for ATR3 - ATR3 encodes a diflavin reductase essential for Arabidopsis embryo development Varadarajan J, Guilleminot J, Saint-Jore-Dupas C, Piégu B, Chabouté ME, Gomord V, Coolbaugh RC, Devic M, Delorme V. New Phytol. 2010 Jul;187(1):67-82. Epub 2010 Apr 12.

Publications

• Plant NADPH-cytochrome P450 oxidoreductases, Jensen K, Møller BL. Phytochemistry. 2010 Feb;71(2-3):132-41 Epub 2009 Dec. 4

CPR Sequences

The table's sequences appear in FASTA format for downloading (copy and paste the sequences into any text editor or word processor and save).

CreCPR	SmCPRa	SmCPRb	SmCPRc	PpCPRa
PpCPRb	PpCPRc	PpCPRd	TchCPR	TcuCPR
PmCPR	OsCPR2a	OsCPR2b	OsCPR2c	SbCPR2c
SbCPR2a	SbCPR2b	TaCPR2c	TaCPR2a	ZmCPR2c
ZmCPR2b1	ZmCPR2b2	AmCPR2	AtATR1	AtATR2
AaCPR2	CaCPR1	CroCPR2	CeCPR1	CbCPR2
EcCPR2	GmCPR1	GhCPR2	GhCPR1	HtCPR2a
HtCPR2b	HaCPR1	LjCPR2	OpCPR1	PsoCPR1
PcCPR2a	PcCPR2b	PhCPR1	PhCPR2	PsaCPR2
PtCPR2b	PtCPR2a	PtCPR1	RcCPR1	RcCPR2
SrCPR2	VsCPR1	VrCPR1	VvCPR2

Key

Chlamydomonas	Selaginella	Mosses	Gymnosperms	Monocotyledons
Cre: Chlamydomonas reinhardtii	Sm: Selaginella moellendorffii	Pp: Physcomitrella patens	Tch: Taxus chinensis, Tcu: Taxus cuspidata, Pm: Pseudotsuga menziesii	Os: Oryza sativa, Sb: Sorghum bicolor, Ta: Triticum aestivum, Zm: Zea mays
Eudicotyledons
Am: Ammi majus, At: Arabidopsis thaliana, Aa: Artemisia annua, Ca: Capsicum annuum, Cro: Catharanthus roseus, Ce: Centaurium erythraea, Cb: Coleus blumei, Ec: Eschscholzia californica, Gm: Glycine max, Gh: Gossypium hirsutum, Ht: Helianthus tuberosus, Ha: Hypericum androsaemum, Lj: Lotus japonicus, Op: Ophiorrhiza pumila, Pso: Papaver somniferum, Pc: Petroselinum crispum, Ph: Petunia hybrida, Psa: Pisum sativum, Pt: Populus trichocarpa x Populus deltoides, Rc: Ricinus communis, Sr: Stevia rebaudiana, Vs: Vicia sativa, Vr: Vigna radiata, Vv: Vitis vinifera

This multiple alignment was made with ClustalX 2.0.11 for Windows.
An alignment of the 54 CPRs listed above.

This phylogenetic tree was made using MEGA 4 for Windows.
A Phylogenetic tree of the above alignment. Neighbor-Join method, 1000 Bootstrap trials.

Logos were made using weblogo.berkeley.edu.

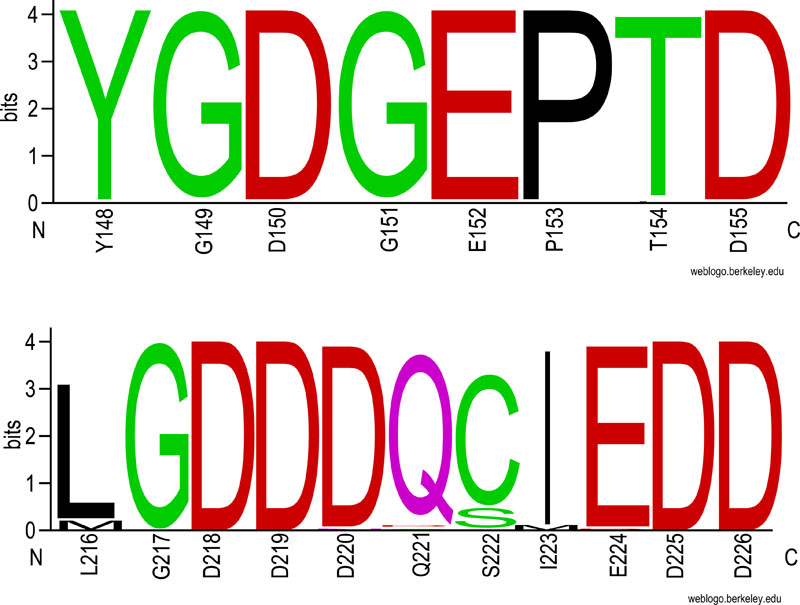

A logo of the P450-binding region of the 54 CPRs shown in the alignment.

Click here for the chromosome map of the Arabidopsis Cytochrome P450 NADPH Reductases (includes cytochromes b₅).
